Building and evaluation of a PBPK model for domain antibody dAb2 in mice

Version 1.0-OSP11.0
based on Model Snapshot and Evaluation Plan https://github.com/Open-Systems-Pharmacology/dAb2-Model/releases/tag/v1.0
OSP Version 11.0
Qualification Framework Version 3.0

This evaluation report and the corresponding PK-Sim project file are filed at:

https://github.com/Open-Systems-Pharmacology/OSP-PBPK-Model-Library/

Table of Contents

1 Introduction

The dAb2 domain antibody is a fusion protein consisting of a VH (heavy chain) and a Vk (light chain) antibody fragment without known binding affinity which was used to a develop a PBPK model (Sepp2015).

Since the dAb2 is smaller than antibodies, the PK data (blood and tissue concentration–time profiles in mice) (Sepp2015) were also used together with pharmacokinetic (PK) data from 5 other compounds to identify unknown parameters during the development of the generic large molecule physiologically based pharmacokinetic (PBPK) model in PK-Sim (Niederalt 2018).

The herein presented evaluation report evaluates the performance of the PBPK model for dAb2 in mice for the PK data used for the development of the generic large molecule model in PK-Sim.

The presented dAb2 PBPK model as well as the respective evaluation plan and evaluation report are provided open-source (https://github.com/Open-Systems-Pharmacology/dAb2-Model)

2 Methods

2.1 Modeling Strategy

The development of the large molecule PBPK model in PK-Sim® has previously been described by Niederalt et al. (Niederalt 2018). In short, the model was built as an extension of the PK-Sim® model for small molecules incorporating (i) the two-pore formalism for drug extravasation from blood plasma to interstitial space, (ii) lymph flow, (iii) endosomal clearance and (iv) protection from endosomal clearance by neonatal Fc receptor (FcRn) mediated recycling.

For model development and evaluation, PK data were used from compounds with a wide range of solute radii and from different species. The PK data used for parameter estimation were from the following compounds: antibody–drug conjugate BAY 79-4620 in mice (Bayer in house data), antibody 7E3 in wild-type and FcRn knockout mice (Garg 2007, Garg2009), domain antibody dAb2 in mice (Sepp 2015), antibodies MEDI-524 and MEDI-524-YTE in monkeys (Dall’Acqua 2006), and antibody CDA1 in humans (Taylor 2008). The PK data used for model evaluation were from inulin in rats (Tsuji1983) and tefibazumab in humans (Reilly 2005).

The PBPK model including the estimated physiological parameters as described by Niederalt et al. (Niederalt 2018) is available in the Open Systems Pharmacology Suite from version 7.1 onwards.

This evaluation report focuses on the PBPK model for the domain antibody dAb2.

Details about input data (physicochemical, in vitro and PK) can be found in Section 2.2.

Details about the structural model and its parameters can be found in Section 2.3.

2.2 Data

2.2.1 In vitro / physico-chemical Data

A literature search was performed to collect available information on physicochemical properties of dAb2. The obtained information from literature is summarized in the table below.

Parameter Unit Value Source Description
MW g/mol 25600 Sepp2015 Molecular weight
r nm 2.43 calculated from MW Hydrodynamic solute radius. Calculated by empirical equation given in Niederalt2018, supplemental material
Kd (FcRn) µM 999,999 high value representing no FcRn binding

2.2.2 PK Data

Published plasma and tissue PK data on dAb2 in mice were used.

Publication Description
Sepp2015 Plasma and tissue PK data after an intravenous dose of dose of 10 mg/kg in mice. Tissue concentrations were analyzed using quantitative whole-body autoradiography. The concentrations were reported as percentage of injected dose / g tissue. These values were converted to concentrations in µg/ml assuming a density of 1 g/ml for all tissues except for bone for which a density of 1.5 g/ml was assumed (as in Ref. Baxter 1994). Furthermore, a body weight of 29 g (i.e. a dose of 290 µg) was assumed for unit conversion of the experimental concentrations (body weight range reported: 26-33 g).

2.3 Model Parameters and Assumptions

2.3.1 Absorption

There is no absorption process since dAb2 was administered intravenously.

2.3.2 Distribution

The standard lymph and fluid recirculation flow rates and the standard vascular properties of the different tissues (hydraulic conductivity, pore radii, fraction of flow via large pores) from PK-Sim were used. dAb2, among other compounds, has been used to identify these lymph and fluid recirculation flow rates used in PK-Sim (Niederalt 2018).

2.3.3 Metabolism and Elimination

dAb2 is predominantly renally eliminated by glomerular filtration (Sepp 2015). Due to the molecular size of dAb2 the glomerular filtration is hindered and the glomerular filtration fraction was fitted. While being only of minor importance, the endosomal clearance process is present. The standard physiological parameters related to endosomal clearance were used (assuming no binding to FcRn).

2.3.4 Tissue Concentrations

For the comparison with experimental data, the parameters Fraction of blood for sampling used in the Observer for the tissue concentrations were set for all organs to 0.42 for comparison with autoradiography data according to the fit results (across compounds) in Ref. (Niederalt 2018). (The parameter Fraction of blood for sampling specifies residual blood in tissue as ratio of blood volume contributing to the measured tissue concentration to the total in vivo capillary blood volume.)

In the present evaluation report, the experimental gut concentrations were compared to simulated organ concentrations for small and large intestine separately in the goodness of fit plots as well as in the concentration-time profile plot.

2.3.5 Automated Parameter Identification

The table shows the parameter values that were specified in the model based on the parameter identification reported in Ref. (Niederalt 2018), and which were not included in the PK-Sim database since version 7.1.

Model Parameter Optimized Value Unit
GFR fraction (glomerular filtration rate fraction) 0.24 -
Fraction of blood for sampling (all organs) - for comparison with autoradiography data 0.42

3 Results and Discussion

The PBPK model for dAb2 was evaluated with blood and tissue PK data in mice.

These PK data (except for kidney) have been used together with PK data from 5 other compounds to simultaneously identify parameters during the development of the generic model for proteins and large molecules in PK-Sim (Niederalt 2018).

As expected, the kidney concentrations are considerably underestimated by the PBPK simulations. In the present PBPK model, the kidney has the same organ model structure as other organs. Thus, drug within the tubular fluid does not account to total kidney concentrations. Drug in tubular fluid is relevant for small proteins which are renally cleared by glomerular filtration. For these proteins, the representation of the kidney has to be extended in order to describe total kidney concentrations, see e.g. Sepp et. al. 2015 (Sepp 2015).

The next sections show:

  1. the final model parameters for the building blocks: Section 3.1.
  2. the overall goodness of fit: Section 3.2.
  3. simulated vs. observed concentration-time profiles for the clinical studies used for model building and for model verification: Section 3.3.

3.1 Final input parameters

The compound parameter values of the final PBPK model are illustrated below.

Compound: dAb2

Parameters
Name Value Value Origin Alternative Default
Solubility at reference pH 9999 mg/l Other-/Dummy value not used in the simulation Measurement True
Reference pH 7 Other-/Dummy value not used in the simulation Measurement True
Lipophilicity -5 Log Units Other-/Dummy value not used in the simulation Measurement True
Fraction unbound (plasma, reference value) 1 Other-Assumption Measurement True
Is small molecule No
Molecular weight 25600 g/mol Publication-Sepp2015
Plasma protein binding partner Unknown
Calculation methods
Name Value
Partition coefficients PK-Sim Standard
Cellular permeabilities PK-Sim Standard
Processes
Systemic Process: Glomerular Filtration-GFR

Species: Mouse

Parameters
Name Value Value Origin
GFR fraction 0.24 Parameter Identification

3.2 Diagnostics Plots

Below you find the goodness-of-fit visual diagnostic plots for the PBPK model performance of all data used presented in Section 2.2.2.

The first plot shows observed versus simulated plasma concentration, the second weighted residuals versus time.

Table 3-1: GMFE for Goodness of fit plot for concentration in blood and tissues

Group GMFE
Blood and tissue concentrations - except kidney 1.89
Kidney tissue concentrations 23.23
All 2.29



Figure 3-1: Goodness of fit plot for concentration in blood and tissues



Figure 3-2: Goodness of fit plot for concentration in blood and tissues



3.3 Concentration-Time Profiles

Simulated versus observed concentration-time profiles of all data listed in Section 2.2.2 are presented below.

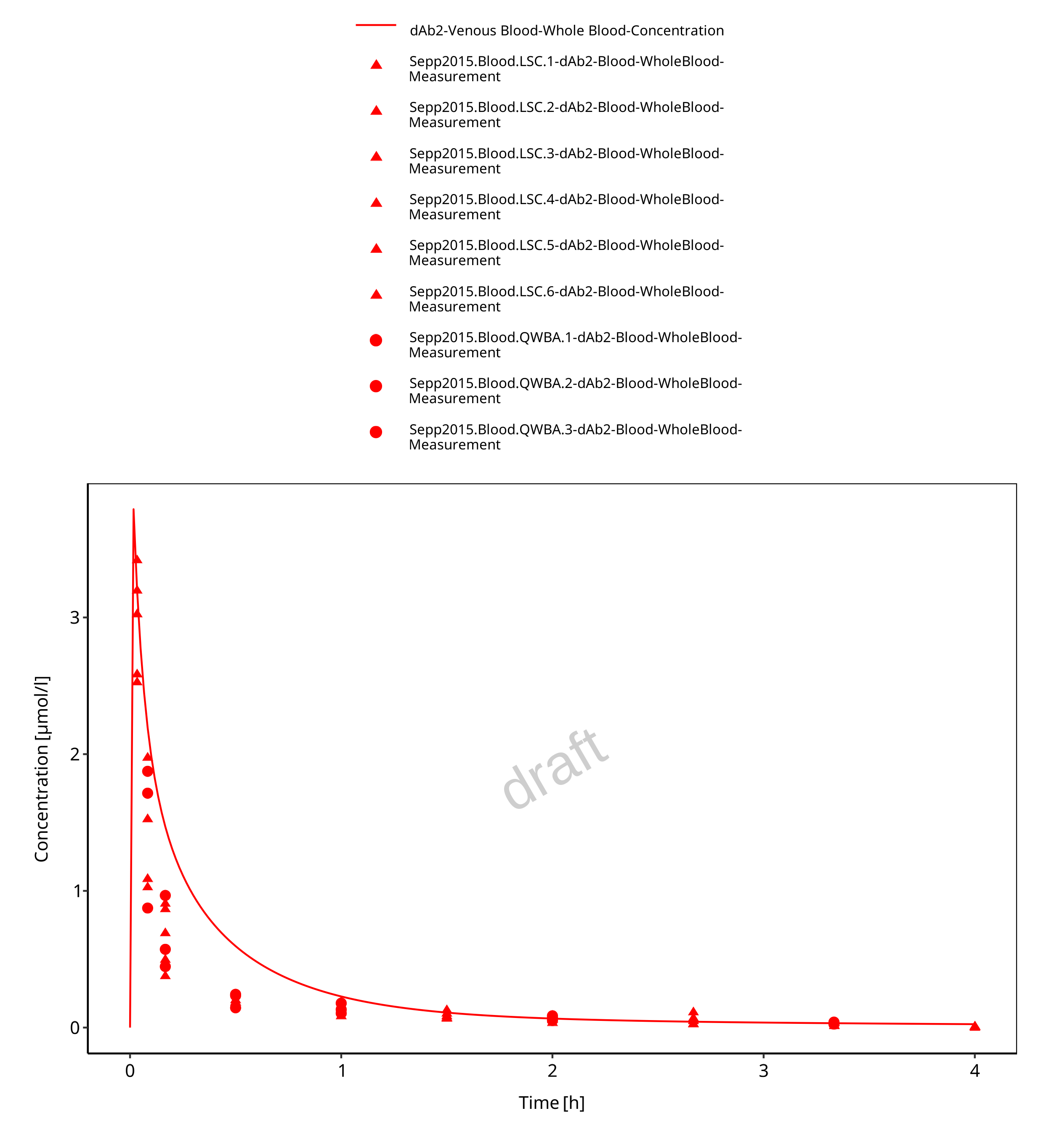

Figure 3-3: Blood - lin scale

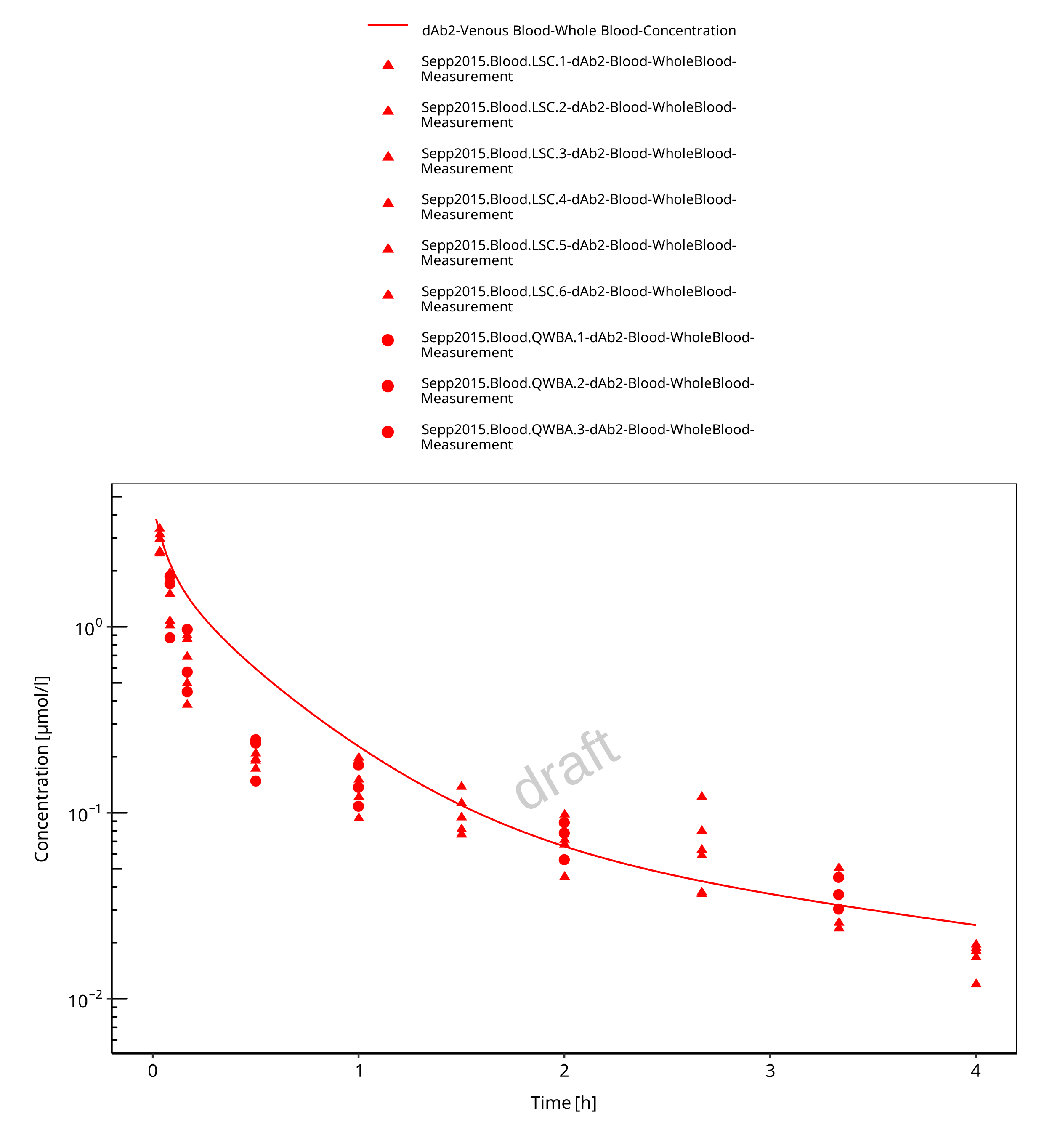

Figure 3-4: Blood - log scale

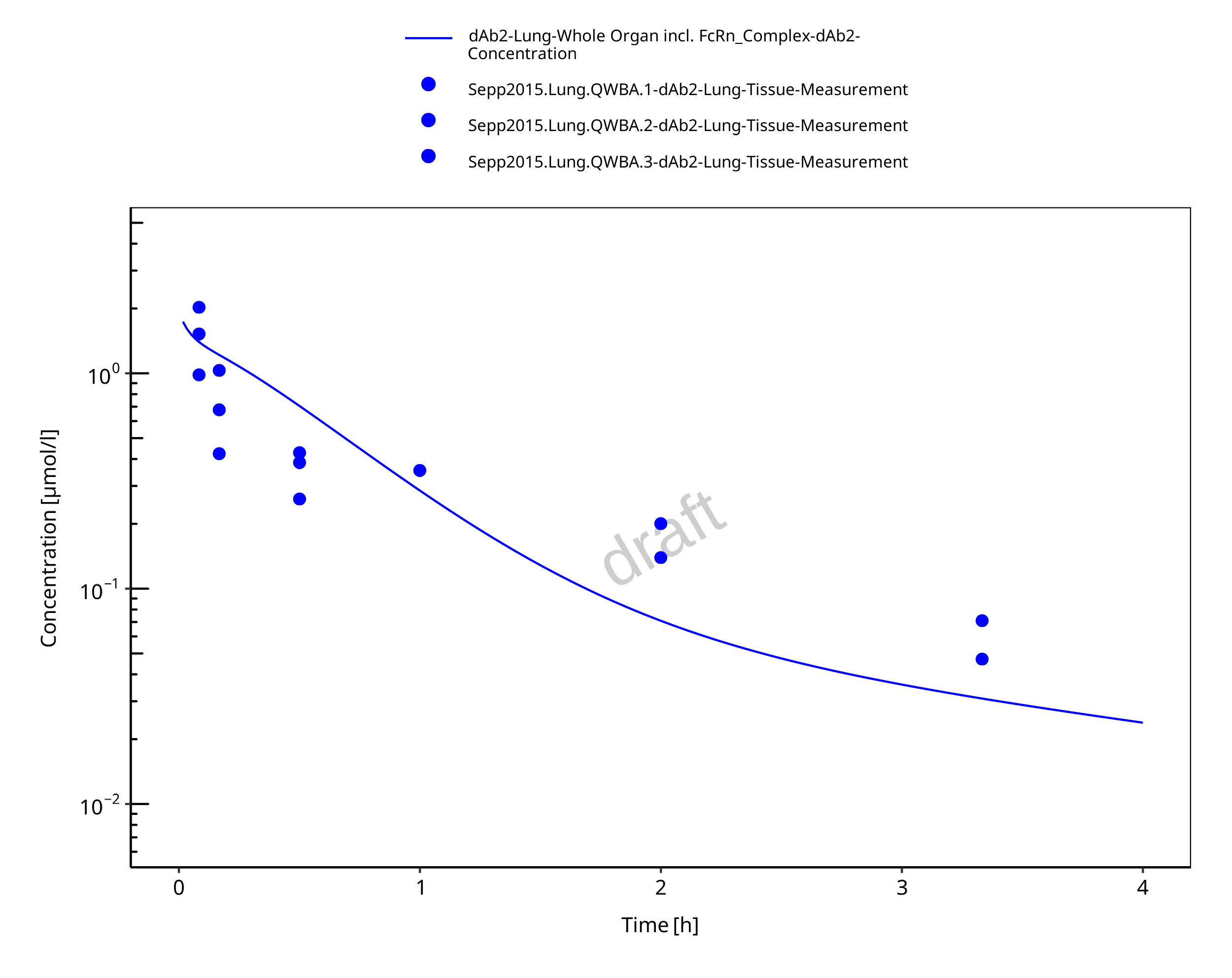

Figure 3-5: Lung

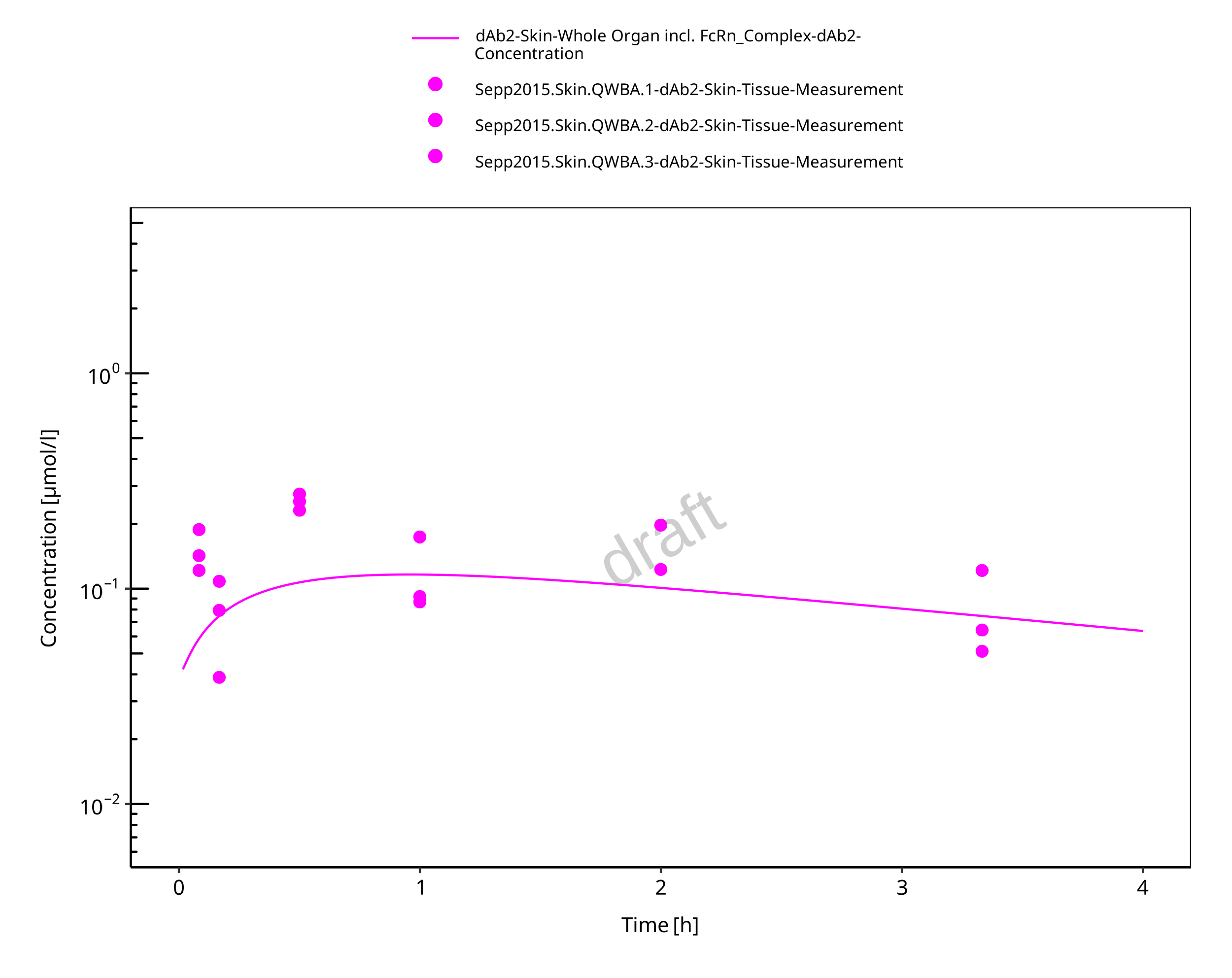

Figure 3-6: Skin

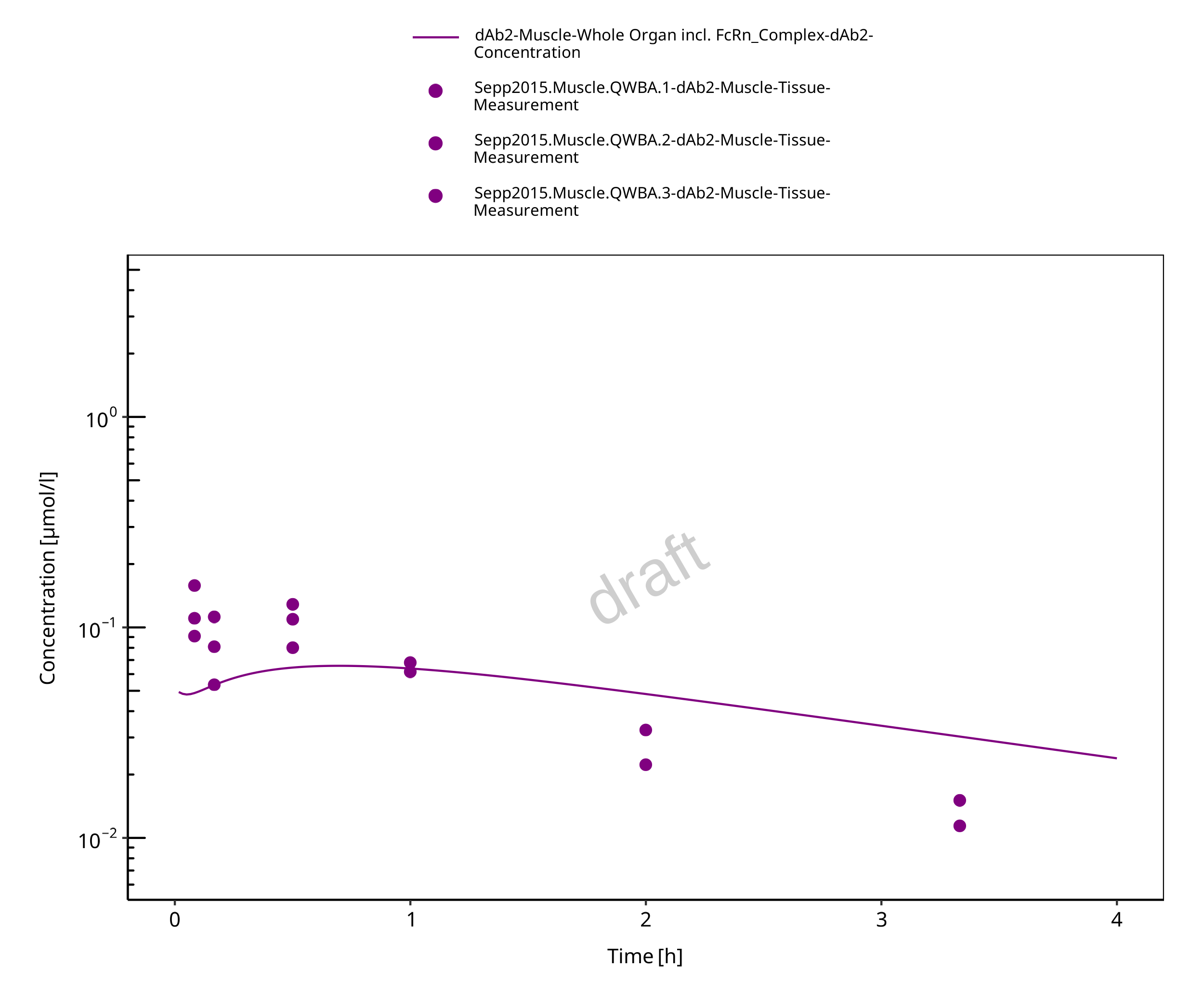

Figure 3-7: Muscle

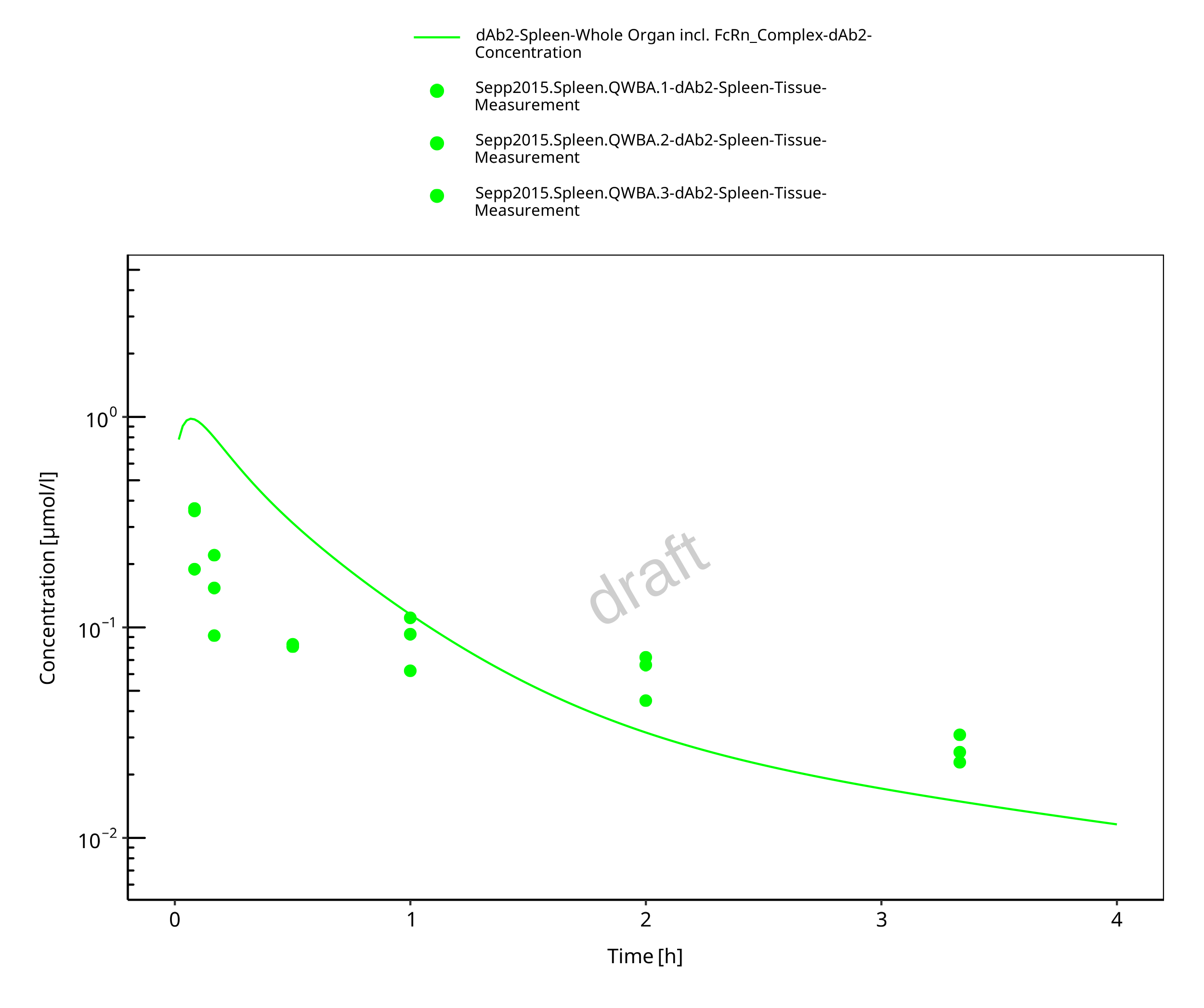

Figure 3-8: Spleen

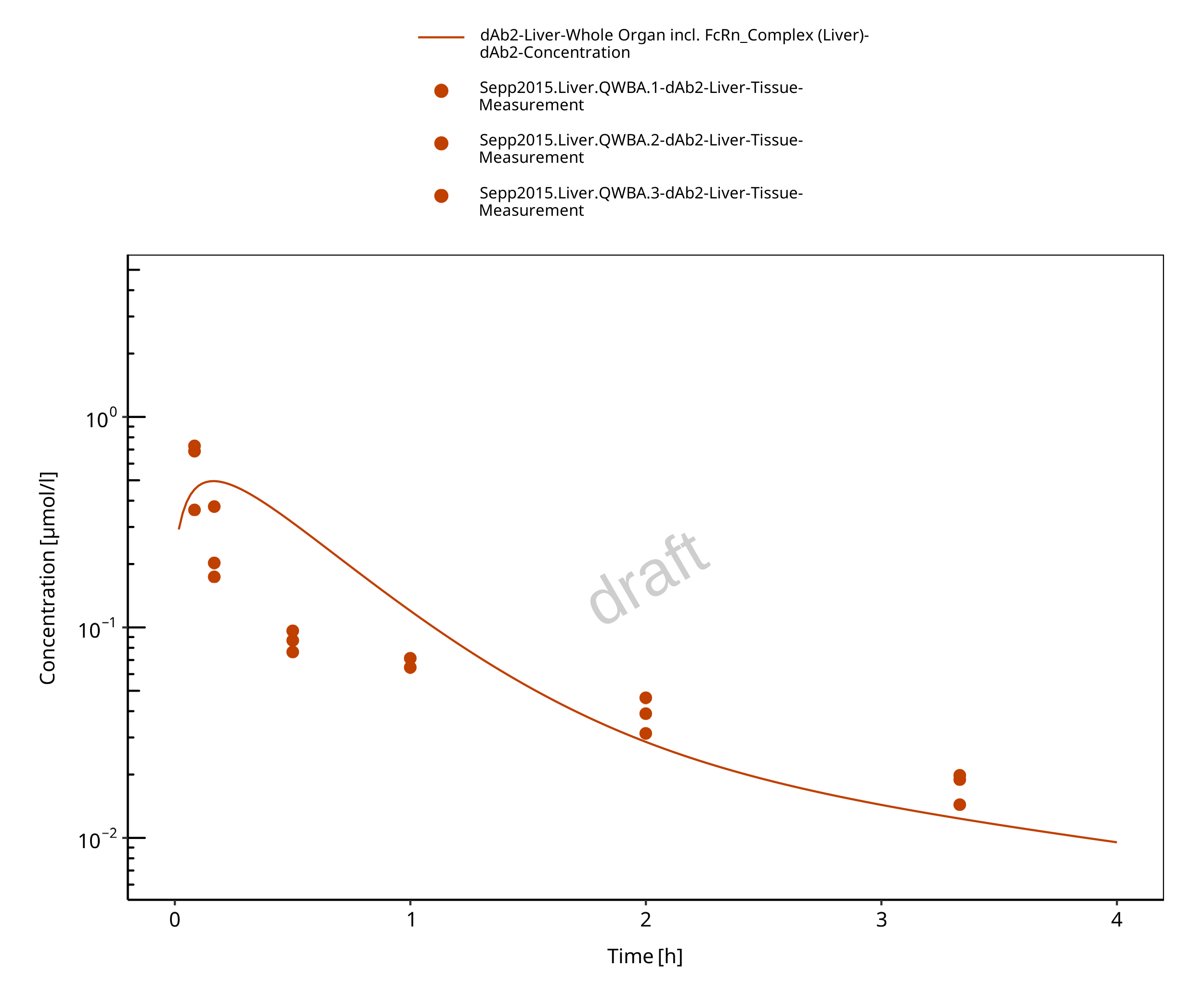

Figure 3-9: Liver

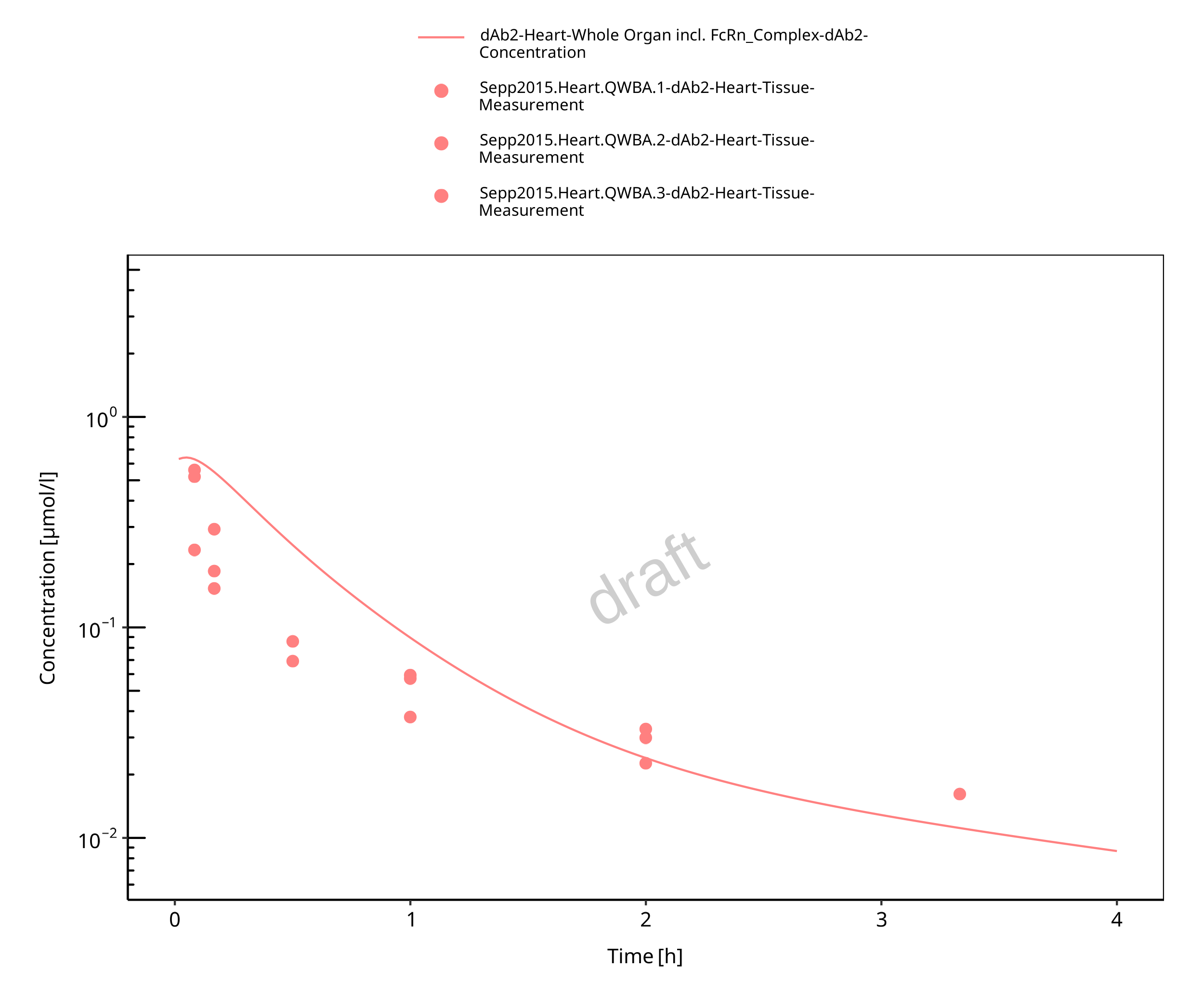

Figure 3-10: Heart

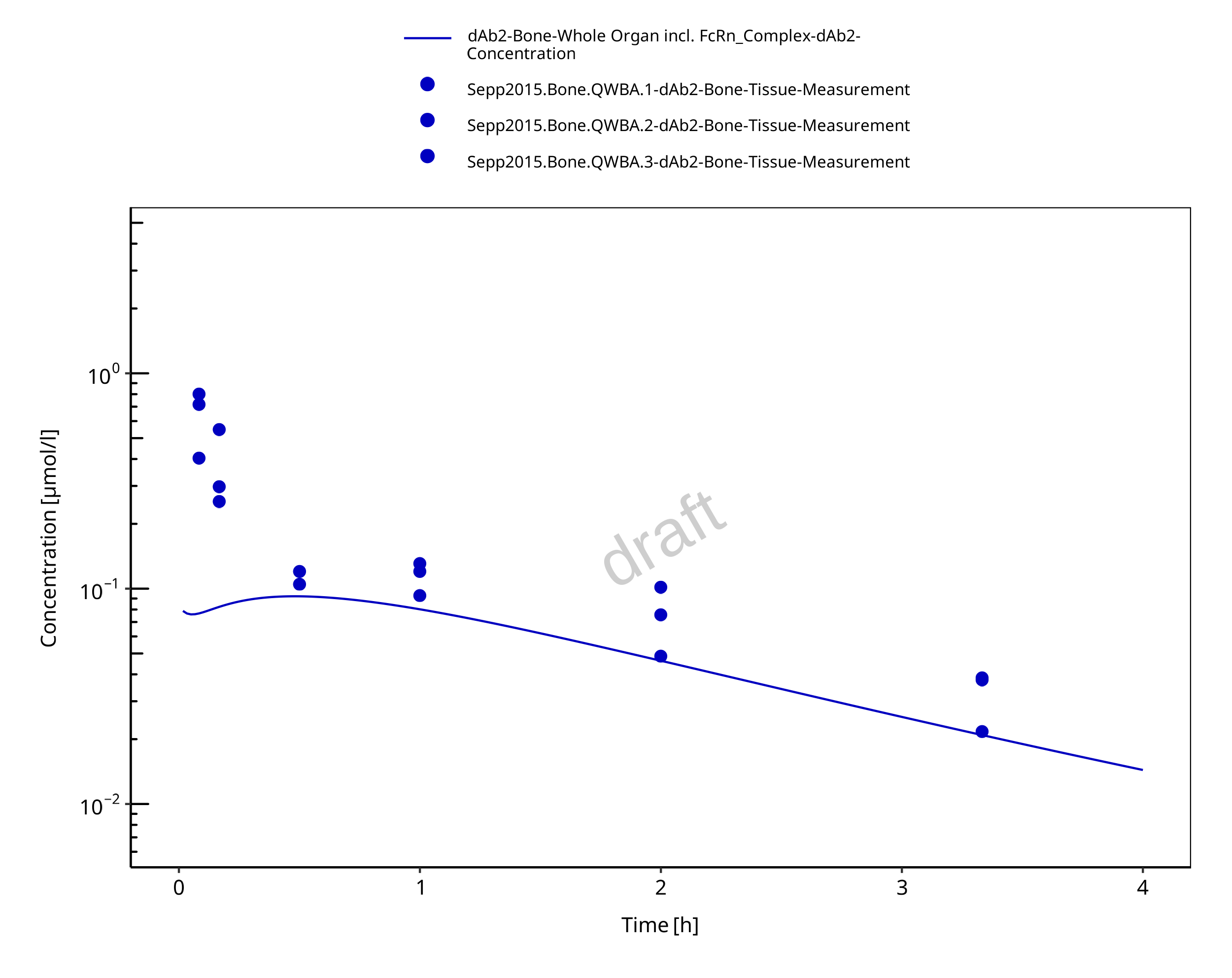

Figure 3-11: Bone

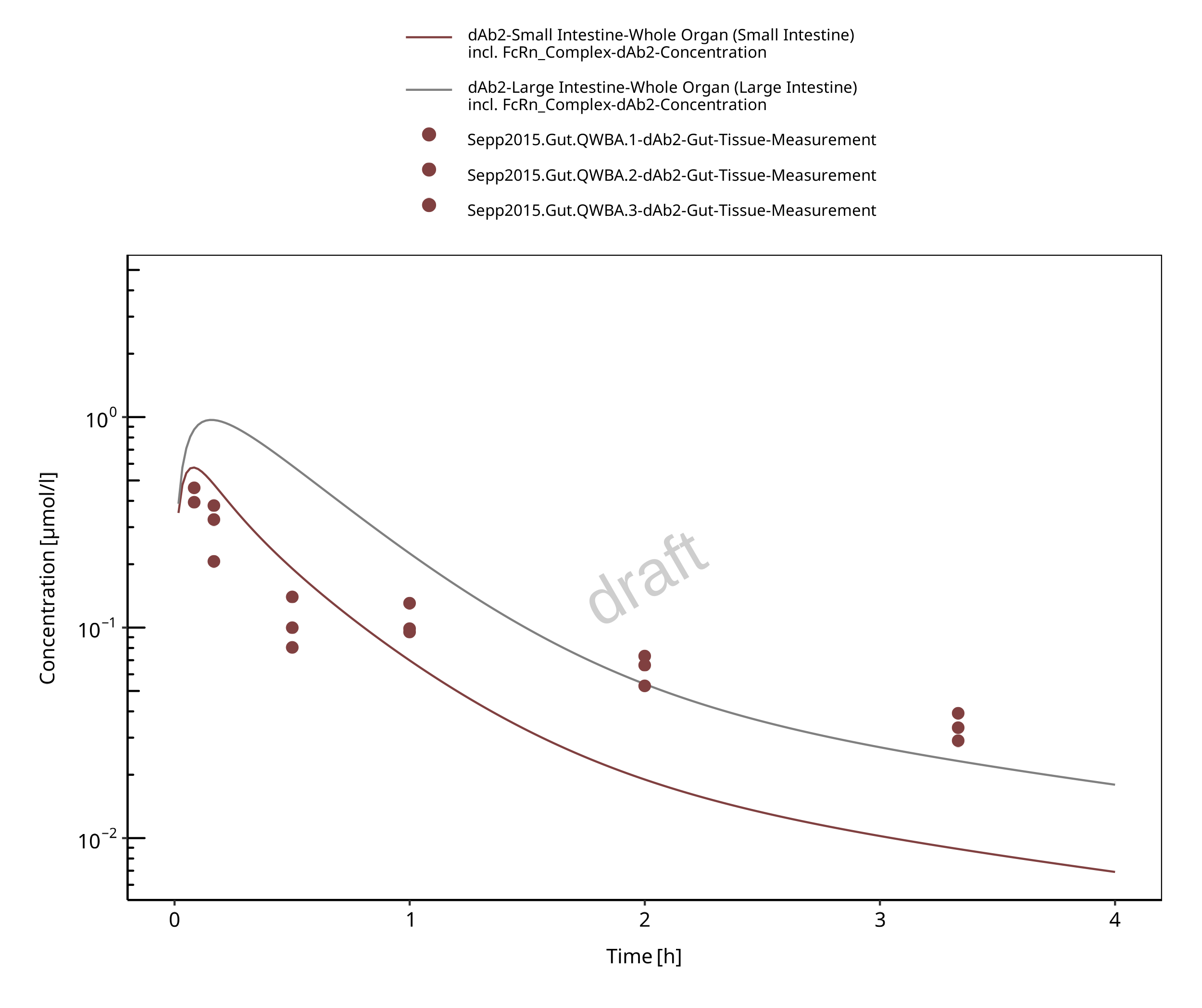

Figure 3-12: Intestine

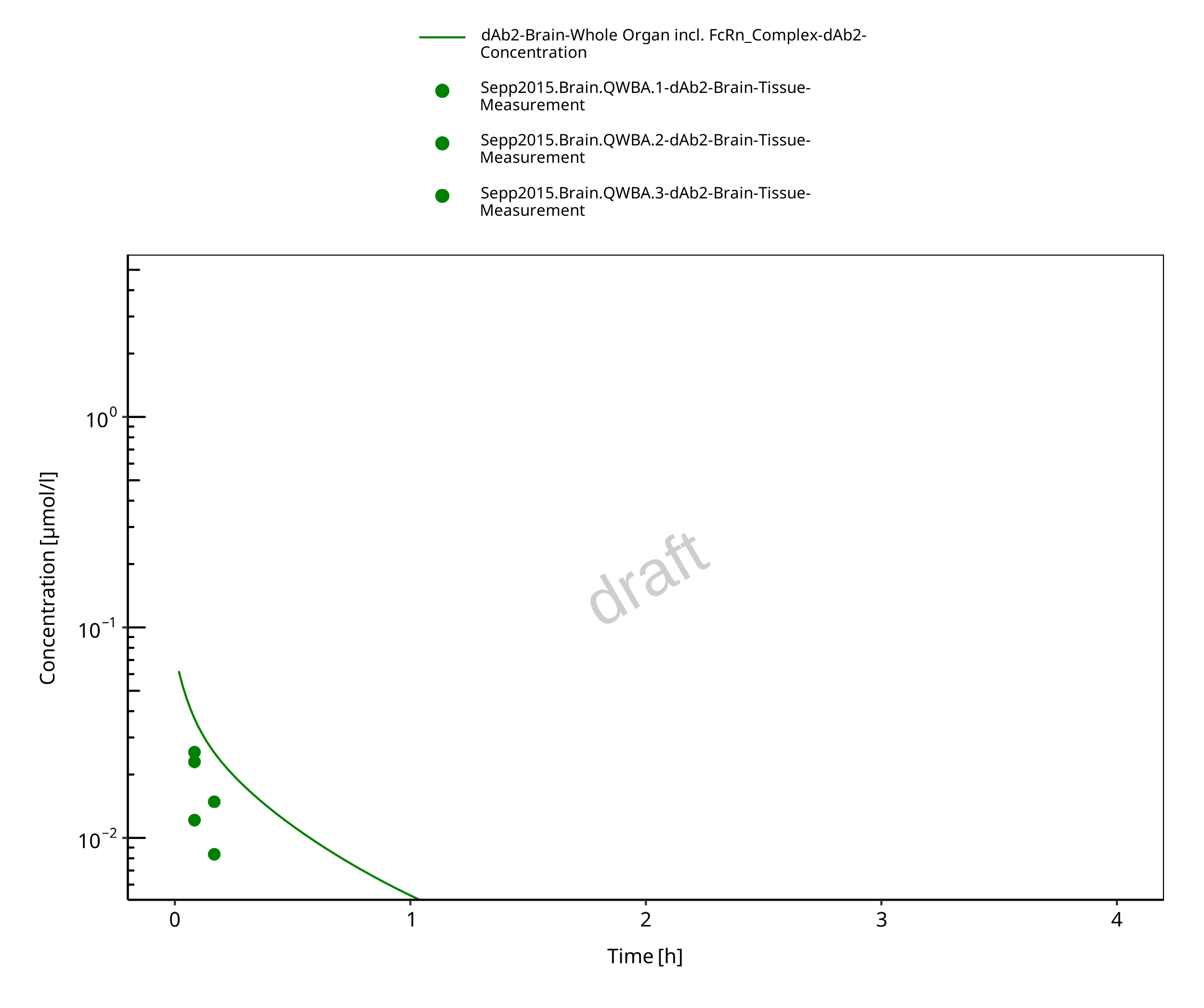

Figure 3-13: Brain

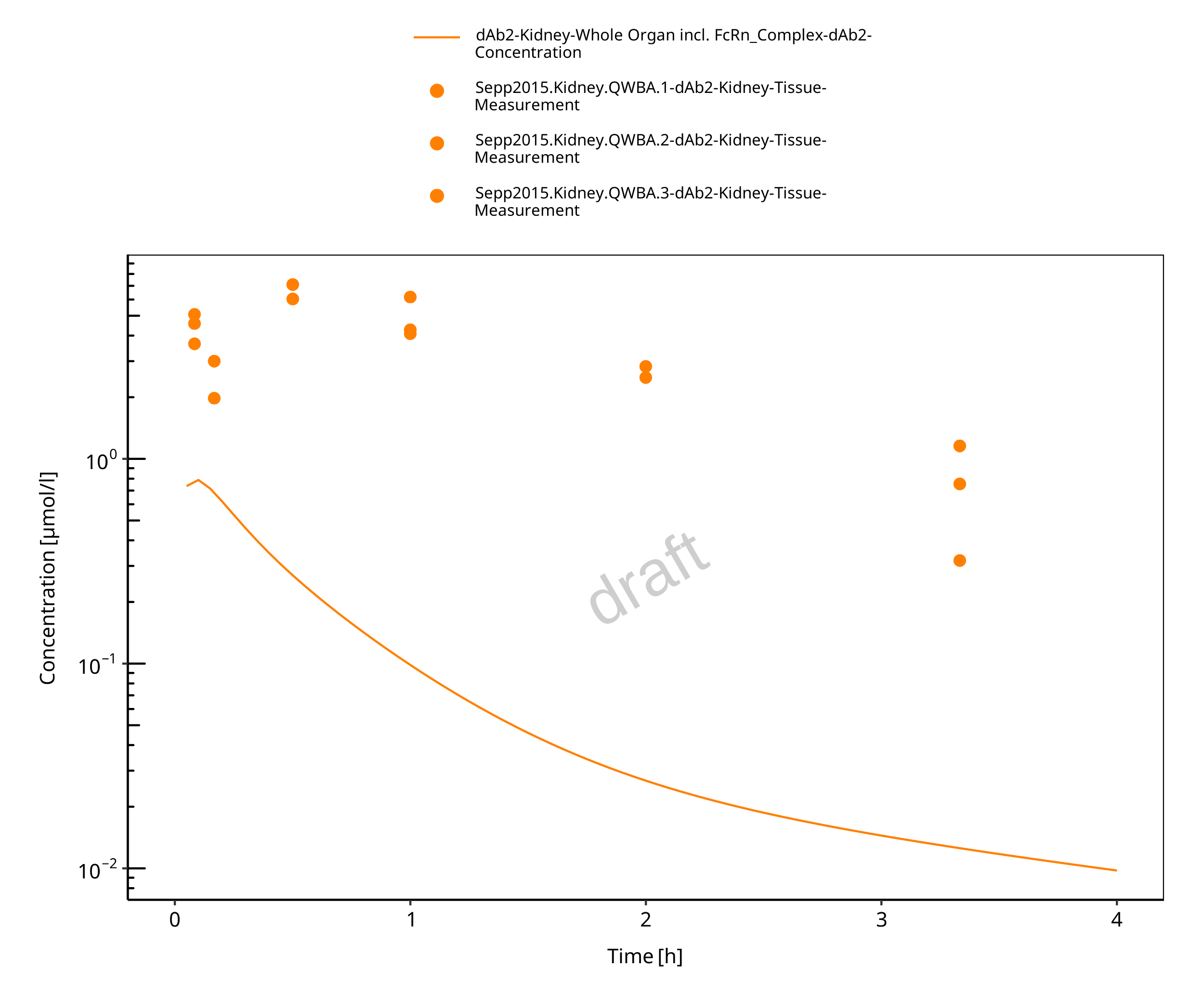

Figure 3-14: Kidney - log scale



4 Conclusion

The herein presented PBPK model overall adequately describes the pharmacokinetics of a domain antibody dAb2 in mice - except for kidney concentrations. Total kidney concentrations cannot be described by the standard kidney representation of PK-Sim for renally excreted biologics, since drug within the tubular fluid is not represented in the organ concentration. Apart from kidney, the largest deviations between measured and simulated concentration-time profiles are observed for spleen for which the initial concentrations are overestimated by the model and bone for which the initial concentrations are underestimated.

The PK data of dAb2 (except kidney concentrations) had been used during the development of the generic large molecule PBPK model in PK-Sim (Niederalt 2018) together with PK data from 5 other compounds (7E3, BAY 79-4620, CDA1, MEDI-524 & MEDI-524-YTE).
